| The machine column and base are nadegrade castiron and heat treated with a stress releasing process.
The structure and strength of material of the castinfs is designed to absorb the cutting Stock and vibrations
In addition the box structure design allows turning of a high accuacy under heavy cutting condition |
|
|
|

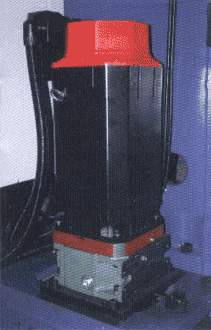

The features of ZF gearbox
Eliminates noise and heat transmitted to soindle. Separate lubrication
High efficiency (over) 95%
Gear shift is controlled by solendid valve. |
|
|
|
 |
|
|
|
3 jaws, 4 jaws, 6 jaws hydraulic chucks are
available as options to improve set up time. |
|
|
|
Paper filter used in coolant
through spindle system |
|
|
|
|
Automatic pallet changer (APC)
raises the productivity and saves set up time |
|
|
|
|
|
|
|
|
|
Coolant though spindle system |
|
|
|
|
|
 |
|
|
 |
|
 |
|
|
| ITEMS |
UNIT |
YV-1000A |
YV-1000ATC |
YV-1000ATC+C |
| Capacity |
| Table diameter |
mm |
ø 1000 |
ø 1000 |
ø 1000 |
| Max. swing |
mm |
ø 1350 |
ø 1350 |
ø 1350 |
| Max. cutting diameter |
mm |
ø 1100 |
ø 1100 |
ø 1100 |
| Max. cutting height |
mm |
700 |
700 |
700 |
| Max. load table |
kg |
4000 |
4000 |
4000 |
| Travel |
Horizontal travel of rail head
(X-axis) |
mm |
1120 |
1120 |
1120 |
Vertical travel of ram
(Z-axis) |
mm |
800 |
800 |
800 |
| Spindle |
| Table speed |
(Low) |
rpm |
2~160 |
2~160 |
2~160 |
| (High ) |
rpm |
160~600 |
160~600 |
160~600 |
| Led spindle speed |
(Low) |
rpm |
-- |
-- |
1~1200
1200~2400 |
| (High) |
rpm |
| Max. table torque |
N.m(kgf-m) |
8,800(898) |
8,800(898) |
8,800(898) |
| Feedrate |
Rapid traverse of rail head
(X-axis) |
M/min |
12 |
12 |
12 |
Rapid traverse of ram
(Z-axis) |
M/min |
10 |
10 |
10 |
| Cutting feed rate |
mm/min |
1~2000 |
1~2000 |
01~2000 |
| Manual feedrate |
m/min |
0~10 |
0~10 |
0~10 |
| Tooling |
| Turret (ATC) type |
|
-- |
12 tools |
16 tools |
| Type of tool shank |
|
-- |
7/24 taper BT-50 |
7/24 taper BT-50 |
Max. of tool size for
automatic tool
changing |
mm |
-- |
280Wx150Tx400L |
| Max. tool weight |
kg |
50 |
50 |
50 |
| Max. loading of ATC |
kg |
-- |
360 |
360 |
| Tool change time(ATC) |
Sec |
5 |
40 |
40 |
| Turret |
| Turret (ATC) type |
|
5 station |
-- |
-- |
Square tool holder
(Applicate tool
size) |
mm |
 32x32(ø 63) |
-- |
-- |
| Motors |
| Spindle drive motor |
kw |
30/37 (α30) |
30/37 (α30) |
30/37 (α30) |
| #2 Spindle drive motor |
kw |
-- |
-- |
7.5/11(α8) |
| X-axis servo motor |
kw |
7 (α30i) |
| Z-axis servo motor |
kw |
9 (α40iß) |
| CF-axis servo motor |
kw |
-- |
-- |
7 (α30i) |
| Coolant motor |
kw |
0.18 |
0.18 |
0.18 |
| Tank capacity |
| Hydraulic tank |
L |
65 |
65 |
130 |
| Coolant tank |
L |
750 (square) |
| Lube. Tank(slide ways) |
L |
4.6 |
| Power sources |
AC220±10%. 60Hz±5Hz |
| Power capacity |
KVA |
80 |
80 |
100 |

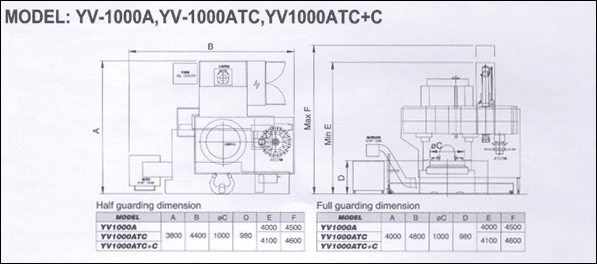

| Floor dimension |
mm |
3800x4400 |
3800x4400 |
3800x4400 |
| Machine weight |
kg |
20,000 |
20,000 |
21,000 |
Positioning accuracy
of linear axis |
mm |
P:±0.007/500,
Ps:±0.005(X&Z),
P::±7.5"/360° Ps:±5"(C-axis)
|
|
|
 |
|
|
| Fabuc OI-T controller |
Air conditioner for electrical cabinet |
| 4T independent manual chuck |
Chip conveyor and chip bucket |
| YV-1000(40") |
Working lamp |
YV-1200(49")
|
5 station turret (A Series) |
| YV-1600(63") |
12 positions tool magazine (ATC Series) |
| ZF-dual speed gearbox |
16 positions tool magazine (ATC+C Series) |
| Hydraulic unit |
Tool kit |
| Coolant unit |
Operation manual |
| Pressure relief automatic lubrication unit |
Half guarding |
| Alarm lamp |
Spindle cooler |
|
|
|
|
|
| Fanuc 18i-T controller |
| Siemens 840D controller |
| Tool presetter |
| X axis and Zaxis linear scale |
| 3 jaw hydraulic chuck |
| Work-piece probe |
| Paper filter |
| X asxis box guide way |
| Grinding function |
| Oil skimmer |
| Transformer |
| Square guarding |
| Complete full guarding |
| Pendant control |
| Tool magazine for 24,32, 48, 60 tool position |
| Tailstock |
| Coolant cooler |
| Coolant through spindle |
| Automatic pallet changer |
Tool holder (Simultaneous taper & flange contact)
|
|
| A series tool holder : |
| ((YV1000A, YV1200A, YV1600A)) |
| STA1-160, STA1-200 |
| STA2-160, STA2-210 |
| STA2-260 |
| STA3-160 |
| STA4-160, STA4-210 |
| STA4-260 |
| |
| ATC series tool holder : |
| ※ST132, ST140 |
| ※BB225, BB325 |
| ※BT225, BT325 |
| |
| ATC+C series turning toolholder : |
| ※MST132,MST140 |
| ※MBB225,MBB325 |
| ※MBT225,MBT325 |
|
|
ATC+C series driven tool
|
| ※BT50-TER16, |
| BT50-TER40 |
| ※BT50-ER20-100, |
| BT50-ER32-100 |
| BT50-ER40-100 |
| ※BT50-SLA20-105 |
| BT50-SLA25-105 |
| BT50-SLA32-105 |
| BT50-SLA40-105 |
| BT50-SLA50.8-105 |
| ※BT50-FMA25.4-105 |
| BT50-FMA31.75-105 |
| BT50-FMA38.1-75 |
| BT50-FMA50.8-75 |
| ※BT-BSA62-300, |
| BT-BSA72-320 |
| BT-BSA62-300 |
| |
| |
|
|
|
|
|
|
|
|
|
