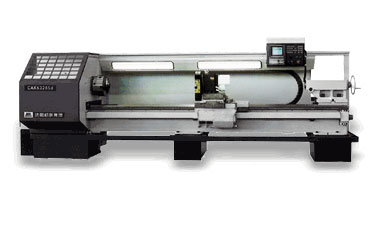

주요취급품목 > 세미CNC선반 |
|
|
|
 |
|
|
 |
·
주축 기어 구동 방식
· 주축회전 무단변속
· 4각 공구대 자동
· 화낙 시스템 체택
· 세미 선반의 가격 혁신
· 독일 시스사와 기술제휴 |
|
|
 |
|
|
| 구분 |
CAK6150 |
CAK6161 |
CAK6163 |
CAK6180 |
| Swing dia
over bed(mm) |
500 |
610 |
630 |
800 |
Swing dia
over
carriage(mm) |
Vertical turret |
300 |
370 |
350 |
480 |
Max turning dia
(mm) |
500 |
610 |
630 |
800 |
Swing dia over
carriage(mm) |
Horizontal
turret |
280 |
350 |
350 |
480 |
Max turning dia
(mm) |
300 |
400 |
500 |
600 |
| Max workpiece
length(mm) |
640/890/1390/1900 |
750/1500/3000/5000 |
1500/3000/5000 |
| Maz turning length(mm) |
600/850/1350/1860 |
600/1350/2850/4850 |
1350/2850/4850 |
| Spindie bore and nose(mm) |
70/A8 |
104/D11 |
| Max bar |
For hollow hydraulich
chuck |
55 |
80 |
| Diameter |
For manual chuck |
65 |
100 |
| Spindle speed(rpm) |
22-220,71-710,512-2000 |
17-128,38-278,
75-570,170-1000 |
17-100,38-222
76-445,171-1000 |
| Steps of spindle speed |
Stepless per
step, total 3 steps
changed automatically |
Slepless per
step, total 3 steps,
changed automatically |
| Repid travel
of turret(X/Z) (m/min) |
5/10(Z=6
while 1900mm) |
4/8 |
| Stroke of
X axis (mm) |
250 |
305 |
320 |
420 |
| Stroke of Z axis (mm) |
600/850/1350/1860 |
600/1350/2850/4850 |
1350/2850/4850 |
| Dia/Travel
of tailstock quill (mm) |
75/150 |
100/250 |
| Taper of tailstock quill |
Morse No.5 |
| Workplece accuracy |
IT6 - IT7 |
| Inverter motor |
7.5 |
11 |
15 |
|
|
|
|
|
|
